Maine Accessibility Corporation - Home Elevator Division
Savaria Infinity
Savaria Infinity
Savaria Infinity
Savaria Infinity

Savaria Infinity

The Infinity luxury home elevator is the ultimate smooth, quiet ride thanks to its precision hydraulic drive system. When you install an Infinity elevator in your home you add the ultimate in convenience. Whether it's carrying luggage or laundry, riding in comfort and luxury eliminates the barrier of stairs.

Your Infinity elevator starts with a reliable hydraulic drive system that features a whisper-quiet pump and motor. With gradual acceleration and deceleration, your ride starts and stops smoothly, automatically levelling at each landing.

The Savaria Infinity elevator can also be ordered in a Heavy Duty (HD) configuration with a capacity of 1400 lbs.

Configuring your Infinity includes choosing up to 6 stops and an interior cab size of up to 15 sq. ft, or 21 sq. ft for the HD version. A standard unit features one opening, and you can add a second opening to accommodate your needs at different landings.

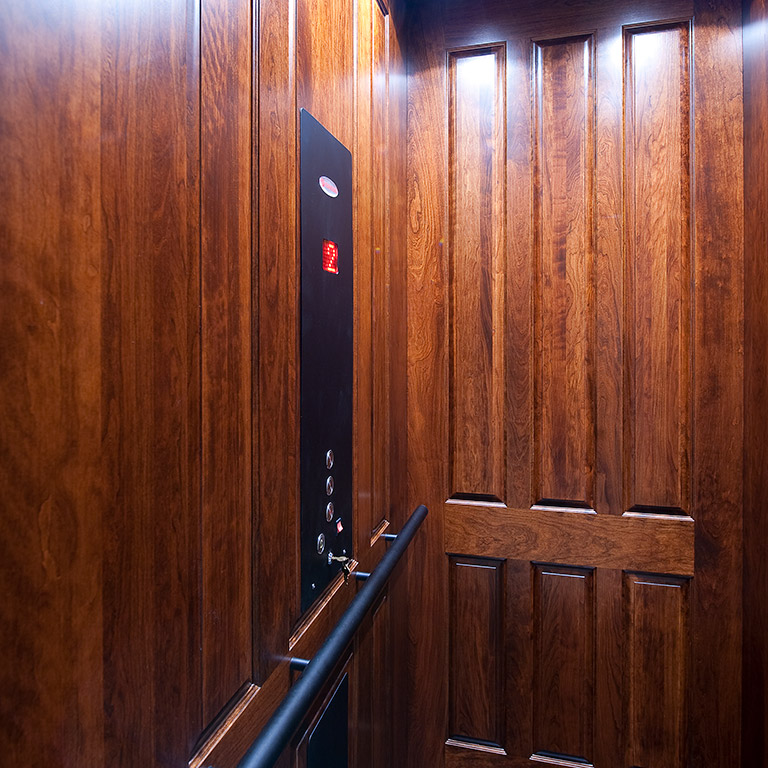

Inside your Infinity elevator, four recessed ceiling lights are included along with a stainless steel cab operating panel and illuminated buttons. A standard unit comes in your choice of melamine walls. Savaria also offers a selection of wood veneer finishes as well as finely crafted hardwoods such as raised cherry panels. See a complete list of options below. You can also have your Savaria elevator finished on site by your own contractor to match your current home finishes.

Features

  • High efficiency hydraulic drive system: The ultimate smooth and quiet ride.
  • Magnetic floor selection: Automatic levelling at each landing to ensure the elevator meets the floor precisely.
  • Submersible pump and motor: For whisper-quiet operation.
  • Variable speed pressure valve: Gradual acceleration and deceleration for gentle stops and starts.
  • Other standard features: Fully automatic operation, automatic cab on/off interior lighting, digital display in car operating panel, surface-mount telephone, white ceiling with 4 down lights, MDF or melamine interior walls in choice of colors.
  • Standard finishes: MDF or melamine (see color chart), stainless steel, clear or bronze anodized aluminum cab operating panel and hall call stations, plywood floor.
  • Safety features: Battery operated (UPS) emergency lowering and lighting, manual emergency lowering button, lockable control panel, elevator door interlocks, emergency stop switch, in-use indicator lights on hall station, slack rope safety system.

Options

  • Optional Configurations: Type 1, 2, 3, 4 and 5
  • Platform Sizes:
    • W36″ x L48″ x H80″ (914 mm x 1219 mm x 2032 mm), Type 1, 2, 3, 4, 5
    • W36″ x L54″ x H80″ (914 mm x 1371 mm x 2032 mm), Type 1, 2, 3, 4, 5
    • W36″ x L60″ x H80″ (914 mm x 1524 mm x 2032 mm), Type 1, 2, 3, 4, 5
    • W40″ x L54″ x H80″ (1067mm x 1371 mm x2032 mm), Type 1, 2, 3, 4, 5
    • Infinity HD - W40″ x L54″ x H80″ (1067mm x 1371 mm x2032 mm), Type 1, 2, 3, 4, 5
  • Optional Height: 84″ or 96″
  • Optional Cab Finishes: Unfinished veneer, lacquered/routered white MDF, raised panel hardwood (see color chart).
  • Optional Fixture Finishes: Brass #4 finish (handrail, cab operating panel, hall call station). Hall call stations available in rectangular or oval design.
  • Doors and Gate Options: Panel-fold gate in clear anodized aluminum with clear acrylic inserts, or anodized bronze with bronze acrylic inserts, visi-fold gate anodized bronze with bronze acrylic, clear-fold gate in clear anodized aluminum with clear acrylic inserts. Power gate and door operators. For the ultimate in convenience, add Savaria automatic slim doors for complience with the upcoming code change!
  • Other Options: HD (Heavy Duty) configuration, up to 6 stops, telephone cabinet, alpha-numeric button marking, two-exit opening, keyed hall call station, interlocks (Kwiklock, Porta, Pro EMI).

Specifications

  • Applications: Residential, indoors
  • Capacity: 750 lb (340 kg), 950 lb (431kg), 1000 lb (453 kg)
  • Speed: 36 ft/min (0.18 m/s)
  • Maximum travel: 50′ (15.24 m)
  • Drive/Motor: 1:2 cable hydraulic drive, 3 hp
  • Minimum Overhead Clearance: 92″ (2337 mm)
  • Minimum Pit: 8″ (203 mm)
  • Power Supply: 208 volts, three phase, 60 Hz, 30 amps or 230 volt, single phase, 60 Hz, 30 amps
  • HD Capacity: 1400 lb (635 kg)
  • HD Drive/Motor: 1:2 cable hydraulic drive, 5 hp submersed
  • HD Minimum Overhead Clearance: 92″ (2337 mm) for standard 80″ cab, 96″ (2438 mm) for 84″ cab, 108″ (2743 mm) for 96″ cab
  • HD Minimum Pit: 12″ (305 mm)

Warranty

Any new elevator sold and installed by Maine Accessibility comes with a 1-year labor warranty. If you have ANY problems with your lift in the first year, we will come fix it free of charge.

If anything happens after the first year, Savaria also includes a 36 months parts warranty on almost everything but batteries. You just pay labor. Please see complete details and exclusions here.
